Luffing cranes

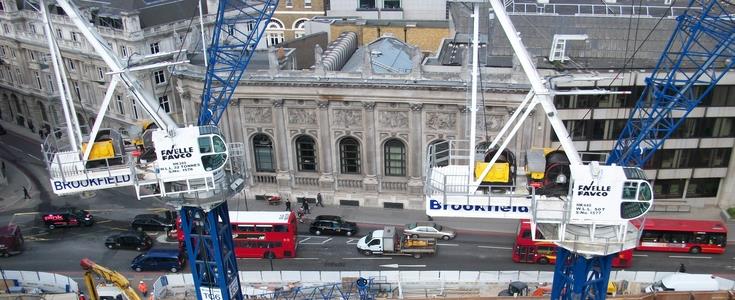

In tight urban work spaces there is often insufficient space for the jib to rotate without being blocked by existing buildings/structures or other cranes. For such sites, Krøll's range of luffing jib cranes offers the ideal solution.
Krøll's own luffing cranes range from 125 to 500tm. However, through the collaboration with our sister company, Favelle Favco Cranes, we can now offer the full Favco M series with Krøll's renowned electric winches and controls - the so called MK series. This extends our range of luffing jib cranes to 2000tm.
All of our luffing cranes offer the standard Krøll features plus additional options such as level-luffing.
Luffing Cranes
K100L | 45 m | 2.0 t | 6 t | 39 m | M16 | PDF » |
K125L | 50 m | 2.0 t | 8 t | 55 m | M16 | PDF » |
K200L | 50 m | 3.5 t | 10 t | 63 m | M22 | PDF » |
K365L | 60 m | 3.2 t | 16 t | 48 m | M22 | PDF » |
K435L | 60 m | 3.2 t | 24 t | | M22 | PDF » |
K500L | 60 m | 3.5 t | 25 t | | | PDF » |
K100L | 148 ft | 4,409 lbs | 13,228 lbs | 128 ft | M16 | |
K125L | 164 ft | 4,409 lbs | 17,637 lbs | 180 ft | M16 | PDF » |
K200L | 164 ft | 7,716 lbs | 22,046 lbs | 207 ft | M22 | PDF » |
K365L | 197 ft | 7,055 lbs | 35,274 lbs | 157 ft | M22 | PDF » |
K435L | 197 ft | 7,054 lbs | 52,910 lbs | | M22 | PDF » |
